Crown SH 5520-30
SH/SHR/SHC Series Heavy Duty Walkie Stackers
Navigate with Ease
The small footprint and extended load capacities of Crown's heavy duty walkie pallet stackers enable operators to quickly and easily maneuver heavy loads while navigating in tight areas.
Optimized for Tight Spaces
Operators of Crown's heavy duty walkie pallet stackers find them easy to use – even in tight spaces – since the innovative controls and compact design enhance maneuverability.
The brake override feature included with the SH, SHR and SHC Series stackers allows the truck to be controlled with the steering handle in a nearly vertical position, providing a tight turning radius for operation in trailers and very narrow aisles.
Designed for Exceptional Control
The exclusive Crown X10 Handle used on heavy duty walkie stacker simplifies every lift truck function while electronic power steering minimizes steering effort and reduces fatigue, even when navigating loads up to 4,000 pounds with one hand. The X10 handle includes a rabbit/turtle switch for two levels of programmable travel performance so operators can quickly select the setting that matches their experience level or specific task.
Powerful and Intelligent Performance
Crown's heavy duty walkie stackers feature a powerful, efficient AC traction system and Crown’s intelligent Access 1 2 3 technology to deliver the most reliable and advanced stacker performance available. The power boost feature assures an extra measure of power when encountering obstacles such as dock plates or doorway transitions.
Durability Inside and Out
No matter which heavy duty walkie stacker fits your application, durability is evident all around to take the abuse of your toughest applications.
A robust frame and heavy-duty mast incorporates generous amounts of heavy-gauge steel throughout. The power unit doors are made of steel for an extra measure of protection to internal components. Die-cast aluminum and structural webbing ensure the control handle provides maximum strength and durability shift after shift.
Heavy Duty Walkie Stackers Offer Lasting Value
Crown builds long-term value into all of its trucks and the entire line of heavy duty walkie stackers is no exception.
With Crown’s vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.

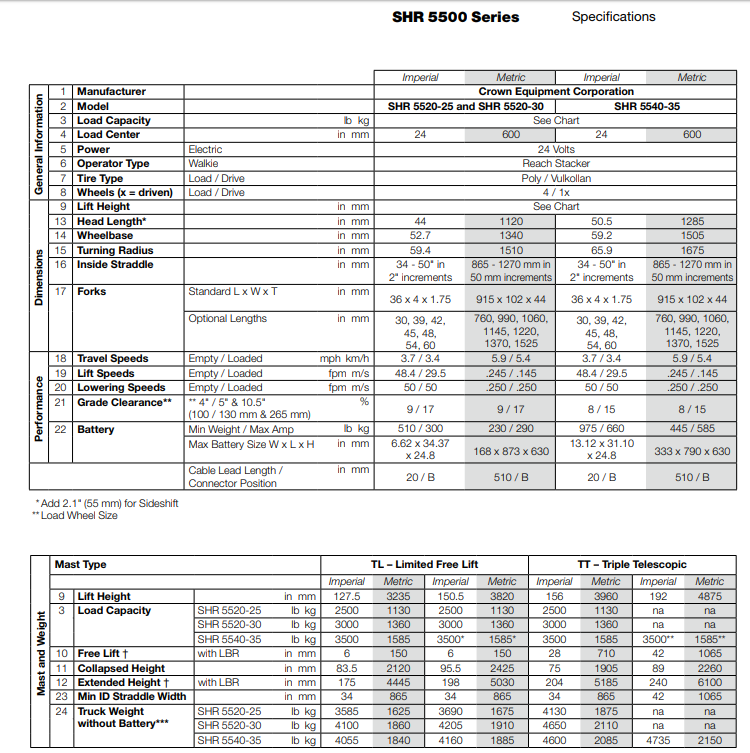

Specifications:
