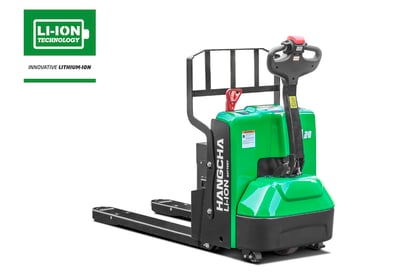

Hangcha CBD22-AC1-NAI

A Series Lithium-ion Walkie Pallet Jack
with capacities of 5,000lbs

SMOOTHER TOUGHER MANEUVERABLE

The A Series Lithium-ion Walkie Pallet Jack is a new logistics handling device developed by Hangcha Group for the high-intensity operating conditions of the North American market. With the AC drive technology, it offers high performance and low maintenance costs. It is also safe, reliable, and can be easily operated. This walkie pallet jack with a 5,000lb load capacity is an ideal tool for loading, unloading, and handling palletized goods in warehouses, supermarkets, and workshops.

Appearance

  • The A Series Lithium-ion Walkie Pallet Truck has a smooth vivid profile and was designed to be ergonomic. The exterior of this forklift is powder coated in a durable, easy to see, green finish that designates it as a lithium-ion powered pallet truck.
  • This pallet truck uses stamped steel plates and injection molded parts. This creates a robust and durable product that is able to successfully take on the wear and tear of a warehouse environment.

Performance

  • The maintenance-free, high-power, brushless AC traction motor has excellent acceleration, performance, good climbing ability, and low heat generation.
  • The CURTIS control system provides accurate, stable, and more efficient control of the AC traction motor.
  • The CANBUS structure makes the communication between the different parts on the truck faster and more reliable.
  • The truck uses the regenerative braking system to prevent the pallet truck from sliding down a ramp.
  • The switches, controller, connectors, and battery plug are all parts from industry known suppliers to ensure reliability, performance, and ease of service

Comfort

  • Thanks to the tiller’s design, all operations can be completed with one hand.
  • When in turtle mode, the truck can be driven slow easily, and more accurately.
  • The pallet truck’s design is optimized for great visibility and easy operation in narrow aisle applications.

Safety

  • The power plug is fixed on the truck body to avoid damage when installing the battery.
  • The pallet jack won’t slip on a grade to ensure safe operation. When pressed, the emergency button on the tiller head immediately
  • cuts power to the pallet truck to help keep the operator safe.
  • The lifting limit switch is designed to help protect loads from damage.

CATL Lithium Iron Phosphate Battery Packs

  • Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation.
  • HANGCHA provides these Lithium Iron Phosphate (LiFePO4 ) battery packs with up to a 5 year or 10,000 hour warranty.
  • See warranty certificate for specific warranty information on the Lithium Iron Phosphate battery packs

Reliability

  • With a high-strength steel frame structure, the truck’s frame has a large residual load capacity and a long service life.
  • The electrical system uses waterproof connectors and protection on the wires and cables to improve the electronic’s reliability.
  • The pump motor has a longer service life and saves energy because of the electronic lifting limit switch on the motor.
  • The low noise and vibration hydraulic power unit enables stable and reliable lifting and lowering.
  • The punched formed forks provide higher strength and are impact resistant.
  • The pallet truck is equipped with tip guides to improve operational efficiency

Maintenance

  • The brushless AC drive motor is maintenance-free. This significantly reduces the operating costs of the pallet truck.
  • The integrated battery indicator, hour meter, and self-diagnostic instrument are all easy to use.
  • The maintenance hatch opens to allow for easy access to all of the truck’s components.
  • The shafts are equipped with lubricated sleeves and oil cups to facilitate maintenance and promote a long service life.

Standard Specifications

  • 24 Volt Electrical System
  • CANBUS Communication
  • Curtis AC Controller
  • PU Drive Tire
  • Maintenance-Free Lithium-ion Battery
  • Built-in 50Ah Charger
  • SB-175 Red Battery Connector
  • Battery Disconnect Handle
  • Key Switch
  • Multi-Function Meter
  • Electric Horn
  • Upright-Tiller Creep Speed Feature
  • PU Load Wheel
  • Single Load Wheel
  • Emergency Cut Off Switch

Options

  • Load Backrest
  • PIN Code Access
  • Rubber Drive Tire
  • Caster Wheels
