Gas Cylinder Storage
Gas Cylinder Storage
Overview
Proper gas cylinder storage is crucial for workplace safety. Gas cylinders contain a wide range of substances, from flammable gases like propane to hazardous materials like compressed oxygen or toxic chemicals. Incorrect storage can lead to leaks, explosions, or exposure to dangerous gases, posing significant risks to employees and the workplace. To ensure safety, cylinders should always be stored in well-ventilated areas away from direct sunlight, heat sources, and flammable materials. They must be kept upright and secured with appropriate restraints to prevent tipping or falling.
Furthermore, cylinders should be labeled clearly to indicate their contents, and employees should be trained to recognize the different hazard classes. Proper signage and storage segregation based on gas compatibility can also prevent accidental reactions between incompatible gases. Regular inspections, including checking for damage, corrosion, or faulty valves, should be part of a comprehensive safety program. Ultimately, adhering to strict gas cylinder storage guidelines minimizes the risk of accidents, safeguards employees, and ensures compliance with regulatory requirements, promoting a safer work environment.

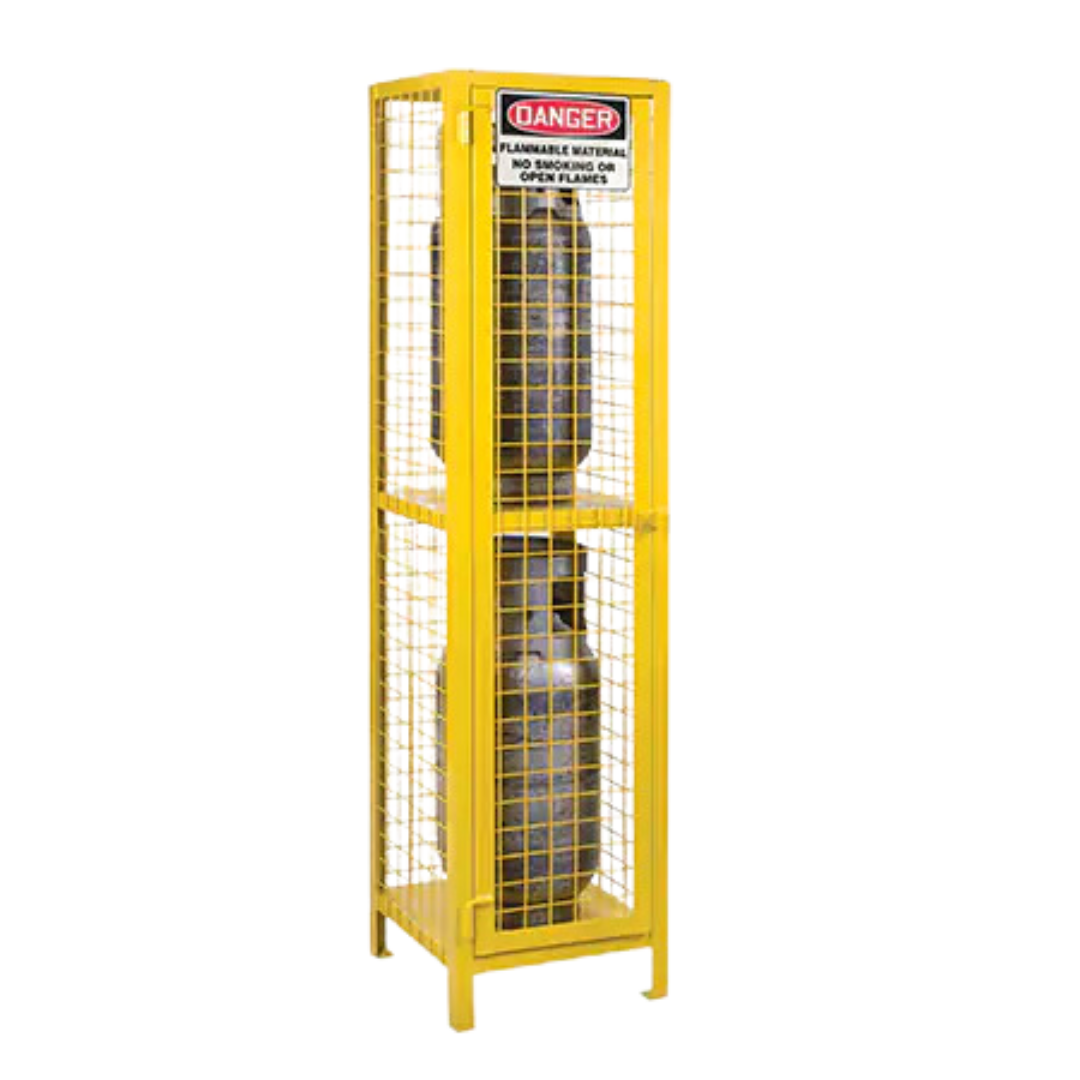

Gas Cylinder Cabinets, 2 Cylinder Capacity, 17" W x 17" D x 69" H, Yellow
.png "Single Pad - Heavy Duty (58)")
Product Description
- 14-gauge checker plate shelves and roof
- 2" x 2" 10-gauge formed steel angle posts
- 9-gauge wire mesh doors and walls for venting
- Easy assemble, knock-down feature saves on shipping costs; Note: Constructed to meet or exceed strict CSA International B149.2-0 Propane Storage and Handling Code. Cylinders must be stored vertically at all times.
- English and French warning labels included
- Heavy-duty construction
- Innovative door design allows for left or right opening installation
- LIQUID PROPANE (35-LB CYLINDERS)
- Padlock hasp for added security

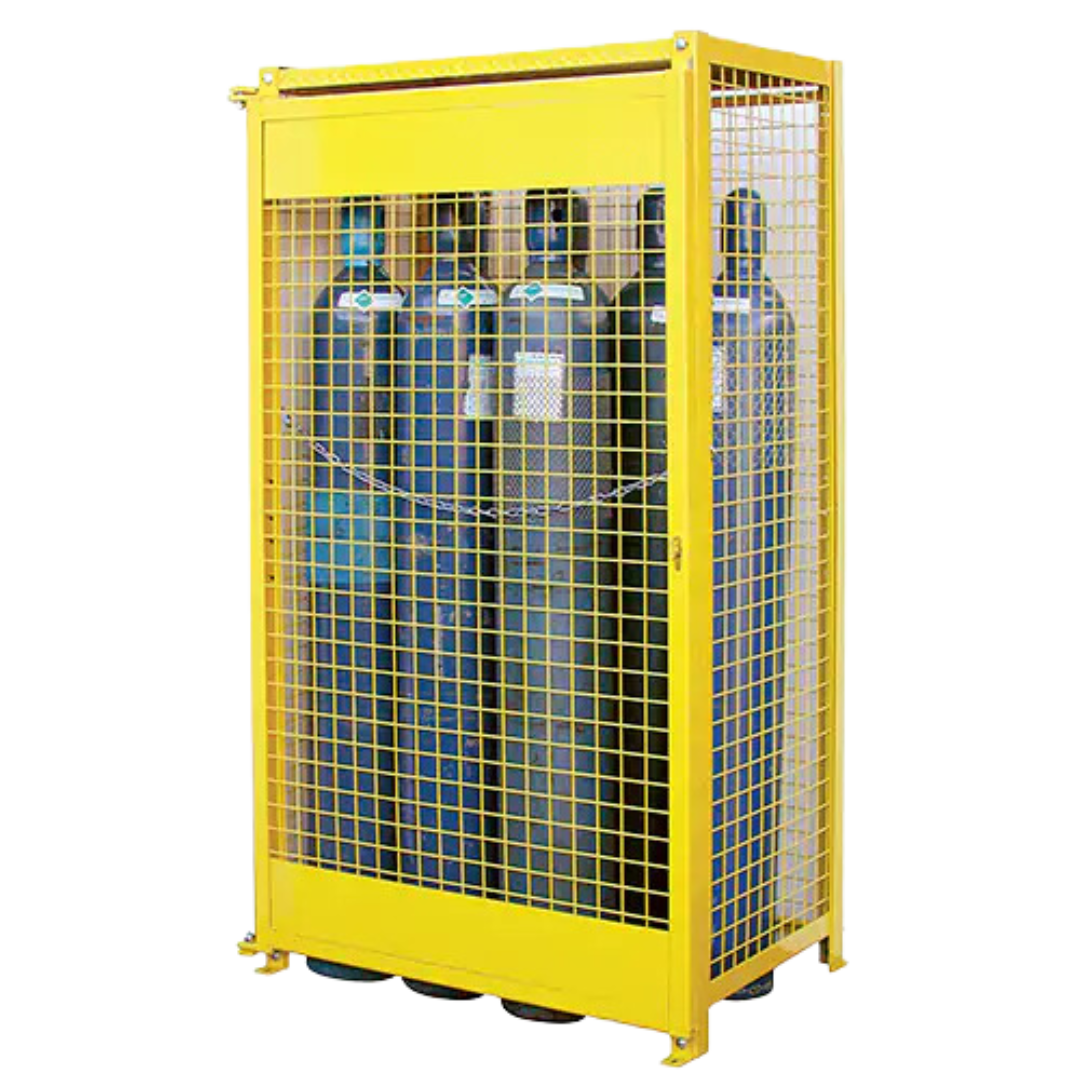

Gas Cylinder Cabinets, 10 Cylinder Capacity, 44" W x 30" D x 74" H, Yellow
.png "Single Pad - Heavy Duty (59)")
Product Description
- 14-gauge checker-plate roof panel
- 2" x 2" 10-gauge formed steel angle posts
- 9-gauge wire mesh doors and walls for venting
- Easy assemble, knock-down feature saves on shipping costs; Note: Constructed to meet or exceed strict CSA International B149.2-0 Propane Storage and Handling Code. Cylinders must be stored vertically at all times.
- English and French warning labels included
- Heavy-duty construction
- Innovative door design allows for left or right opening installation
- OXYGEN GAS (9" DIAMETER CYLINDERS)
- Padlock hasp for added security

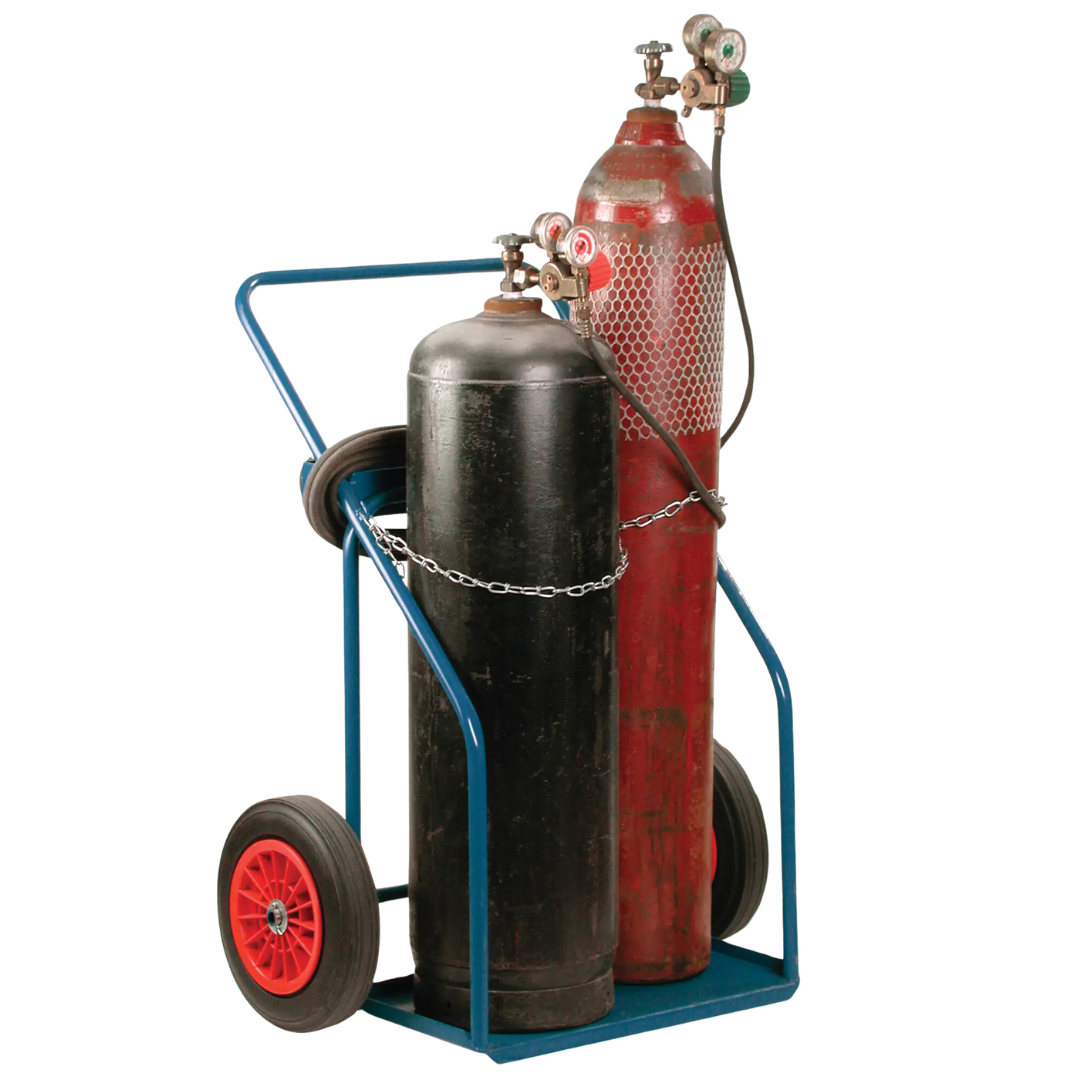

Gas Cylinder Carts, Rubber Wheels, 13" W x 25" L Base, 1000 lbs.
.png "Single Pad - Heavy Duty (60)")
Product Description
- Choice of carts for a wide range of cylinder sizes and terrains.
- Capacity: 244 cu.ft. oxygen, 300 cu.ft. acetylene cylinders

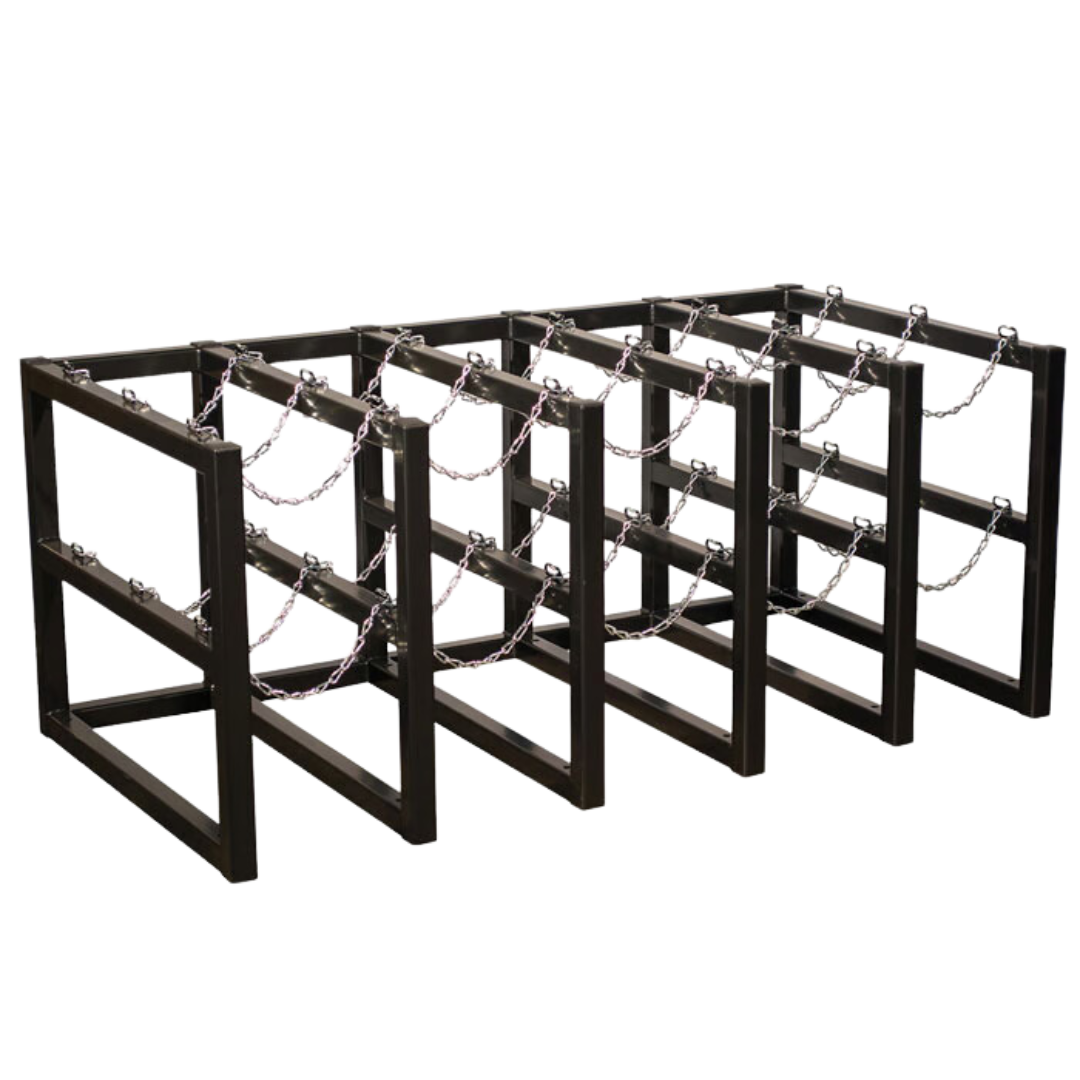

5 Wide by 3 Deep, Gas Cylinder Storage Rack, 15 Cylinder Capacity, Steel - 35178
.png "Single Pad - Heavy Duty (61)")
Product Description
Recommended for indoor or outdoor bulk cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).
Helps comply with OSHA, NFP1, NFPA 55, and CGA.

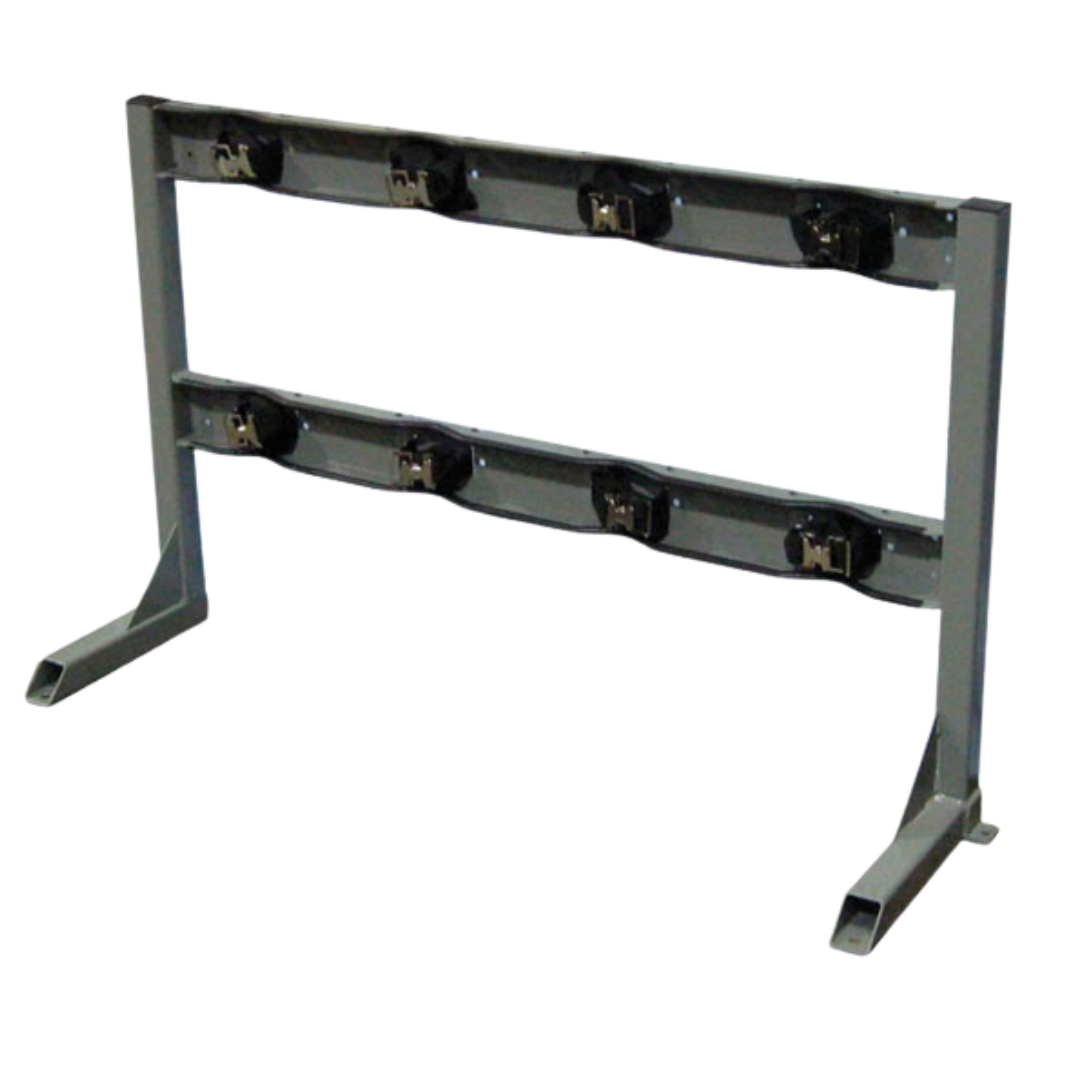

Steel Gas Cylinder Stand, 4 Cylinder Capacity, In-Line - 35298
.png "Single Pad - Heavy Duty (62)")
Product Description
Designed for the safe storage of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Powder-coated to ensure long service life and chemical resistance. Pre-drilled holes in base for floor mounting with application specific fasteners (not included).
Two heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.

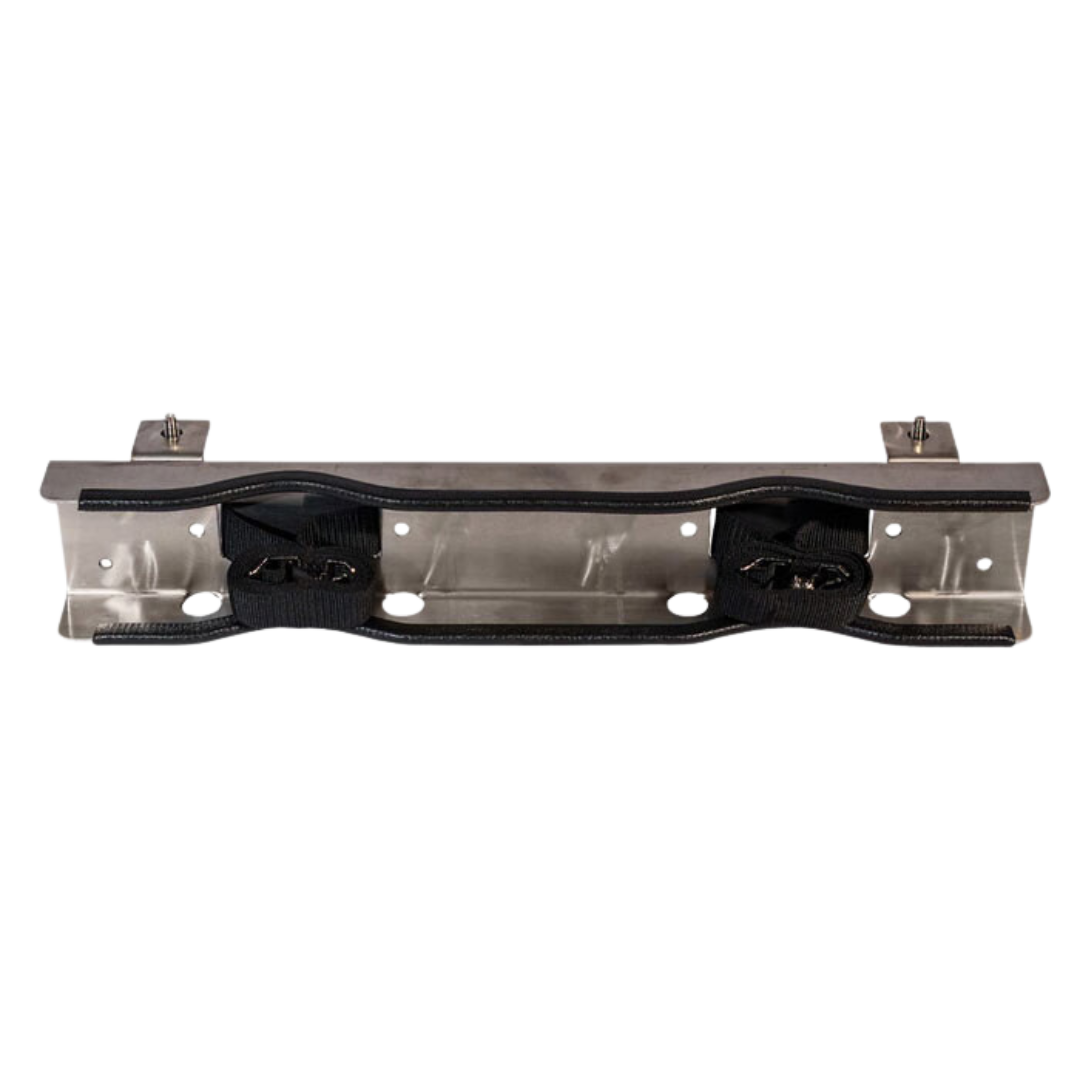

Stainless Steel Gas Cylinder Support Bracket, Two 12" Cylinder Capacity, Bench Mount - 35272
.png "Single Pad - Heavy Duty (63)")
Product Description
Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, stainless steel to ensure long service life and improved corrosion resistance. Using dual 0.375-in (10-mm) diameter clamping posts with 1.5-in (38-mm) swivel pad faces, these models clamp to tables 1- to 2.75-in (26- to 70-mm) thick. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder station.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
