Fall Protection Grating

Product Description

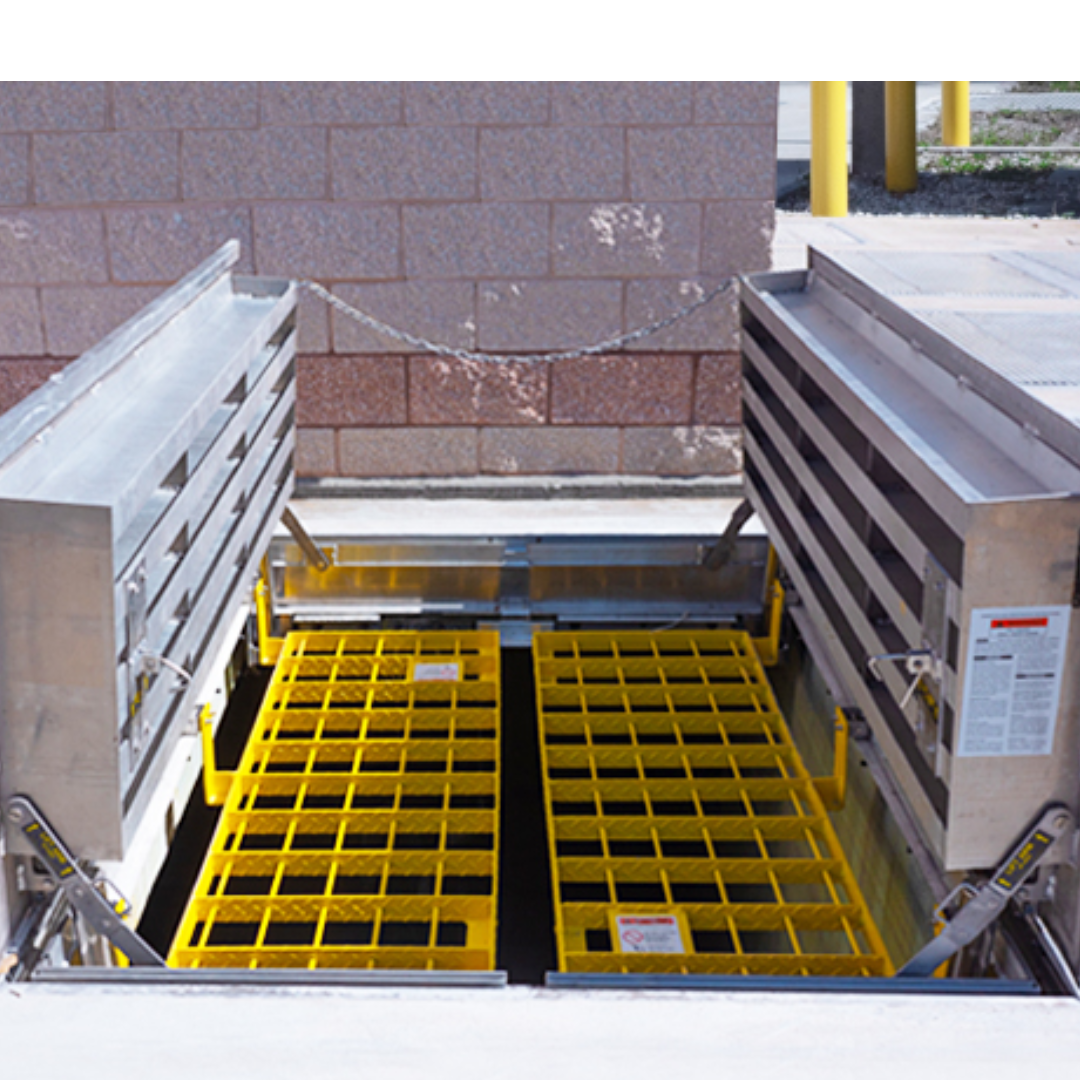

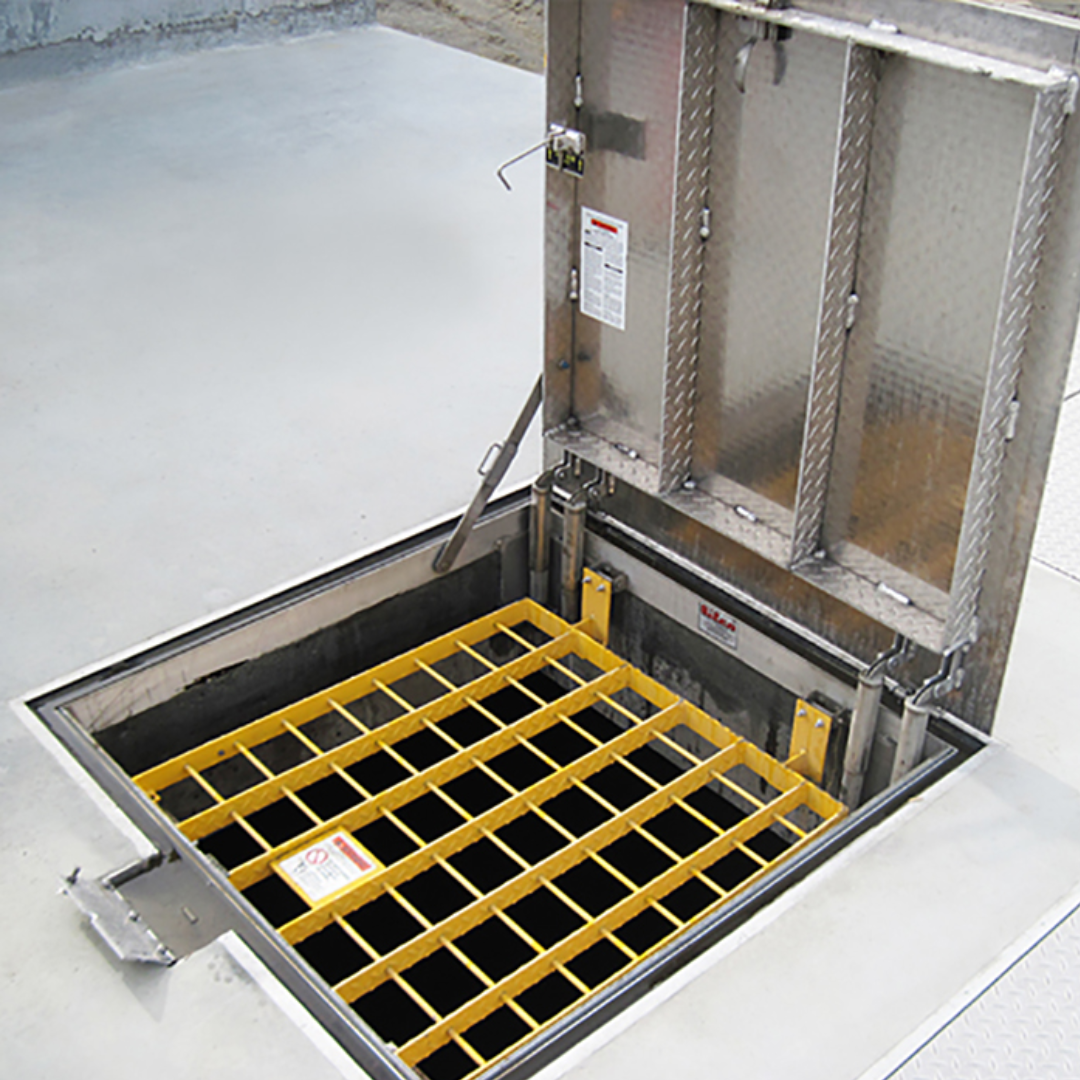

BILCO's fall protection grating system for access doors has been redesigned to offer the same level of protection at a much lower price. New features include a standard powder coat paint finish. Another new feature of our fall protection for access doors is a unique pintle hinge design that allows the grating to open to the full 90 degree position, maximizing the area available for access. The Fall Protection Grating System permanently mounts under access door covers and is available as a factory installed option on the following Bilco models:

• Type J, JD, J-AL, JD-AL-300 PSF (1464 kg/m2) and H20 reinforced Doors
• Available on all standard sizes
• Available for special sizes (contact BILCO for more information)
• Retrofit kits are also available for field installation (for door models noted above)

• Grating panel(s) shall be aluminum with a powder coat paint finish that is safety yellow in color. Panel shall be designed to meet the requirements of OSHA standard 29 CFR1926.502(c) and be equipped with a hold open device to lock the grating panel(s) in the open position. Hold open device and all hardware shall be Type 316 stainless steel. Manufacturer shall provide a twenty-five year warranty against defects in material and workmanship.

Fall Protection Grating

A project in Waterford, Connecticut demonstrated the town’s commitment to the safety of its employees. Nine floor doors from BILCO with fall protection grating were installed at various water treatment stations in the town, which has more than 19,000 residents and sits on the border between the Long Island and Block Island Sounds
