Expansion Joint Covers

Interior Cover Solutions

Our interior cover solutions are designed for a wide variety of applications to integrate seamlessly with surrounding finishes.

Outlet Collection Riverwalk_9
Lincoln Square_10
Tampa Airport Conrac for CS - CONRAC Floor Strip One Point Centered to BudgetAvis
Kaiser Permanente LENA-KaiserDayCrdr
Washington University School of Medicine FTM_3984
San Francisco General Hosp_EJC_2

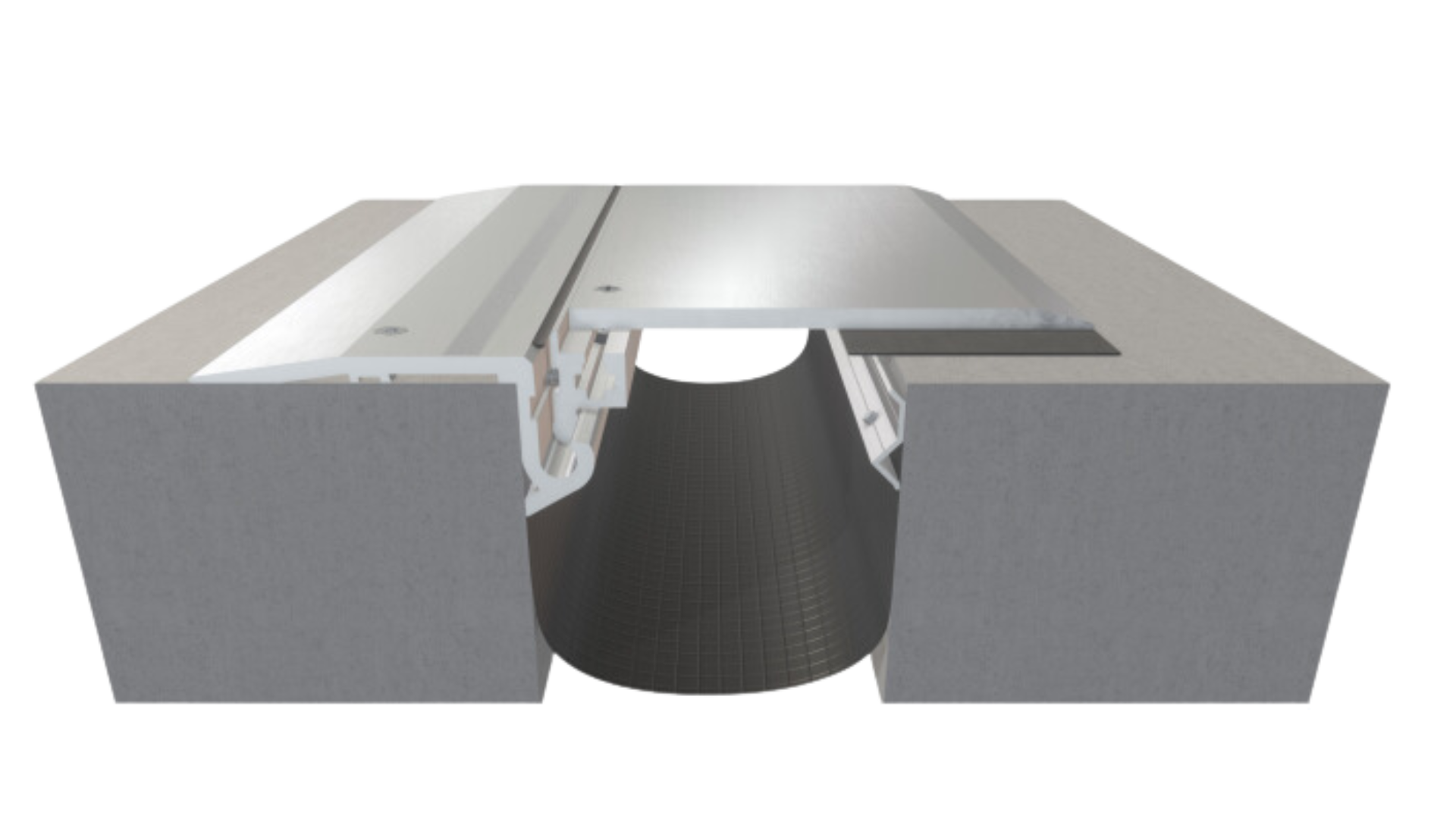

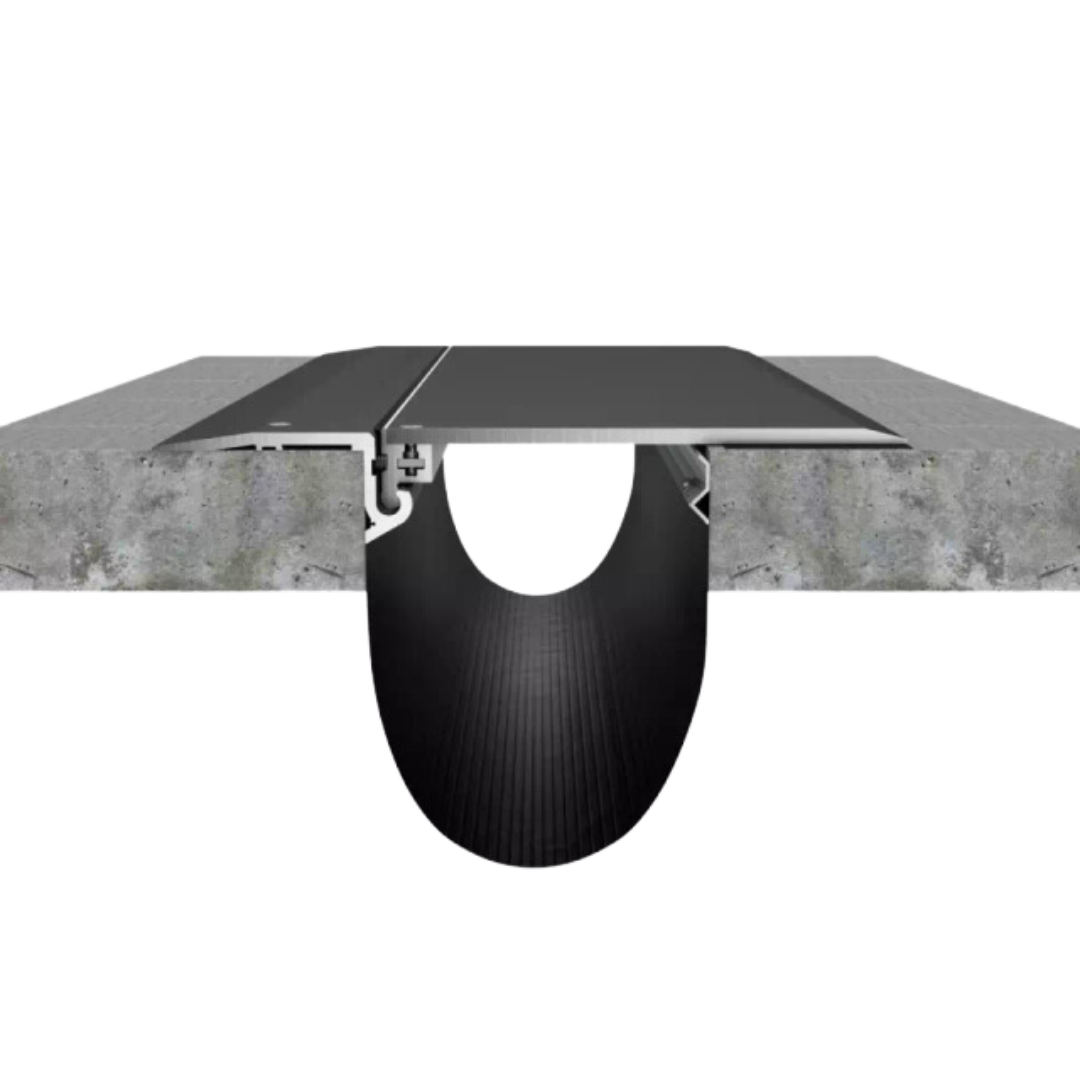

SHP Joint Cover

Untitled (1080 x 1080 px) (32)
 Overview

This surface mounted cover is specifically designed for parking structure applications and other areas with vehicular access. The SHP-SHPW cover uses a dampening pad and springs as a sound dampening system to reduce impact noise from vehicular traffic. This quiet post tension system is ADA compliant, accommodating tension compression in lateral shear movements. Vapor barrier comes standard. Joint sizes range from 8” – 24”.

 Advantages

• Rugged and durable design for long lasting performance
• Dampening pad and springs reduce noise from vehicular
traffic
• Can accommodate vertical displacement
• Allows for a wide range of movement, including seismic
and lateral shear
• 200% movement models available

Untitled (1080 x 1080 px) (34)

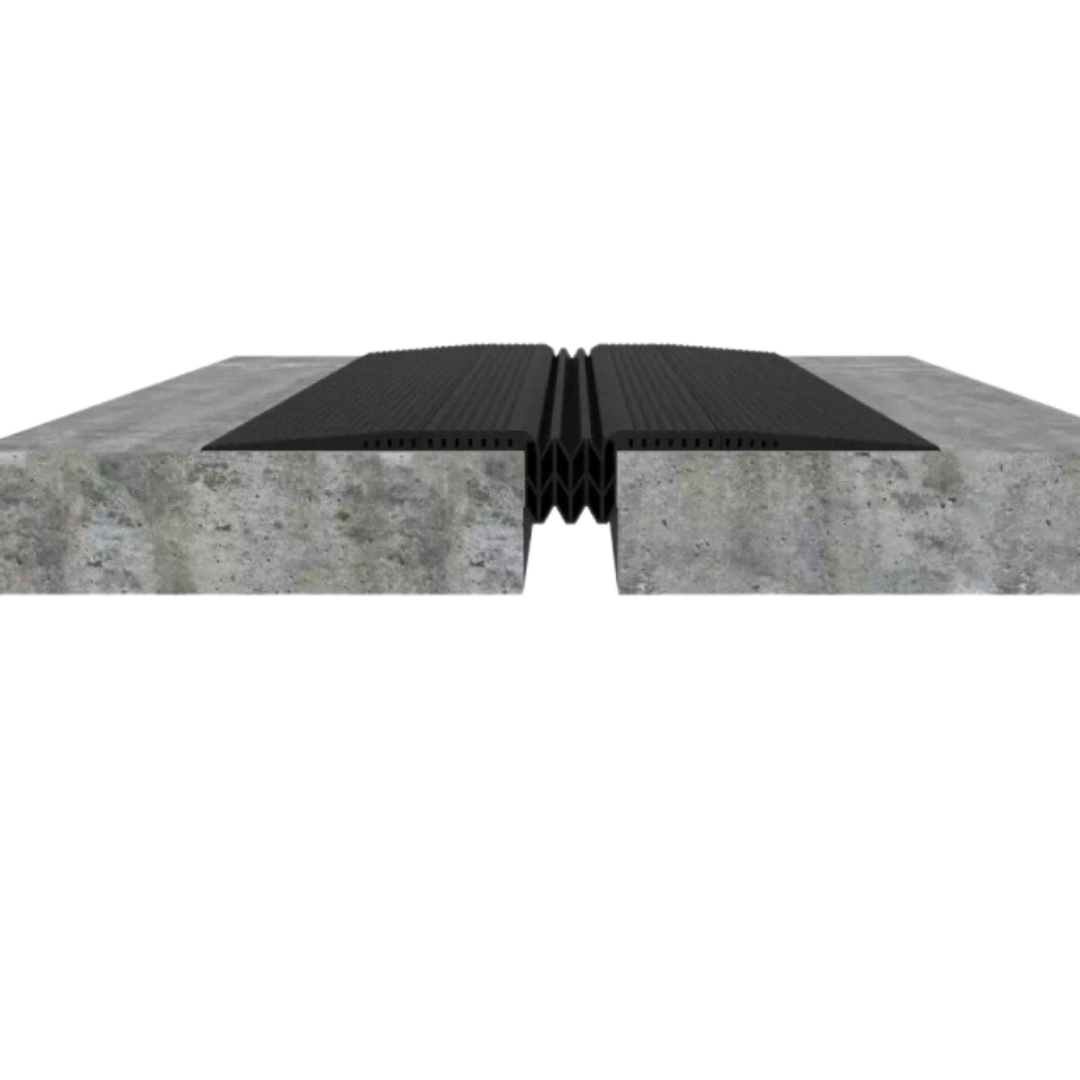

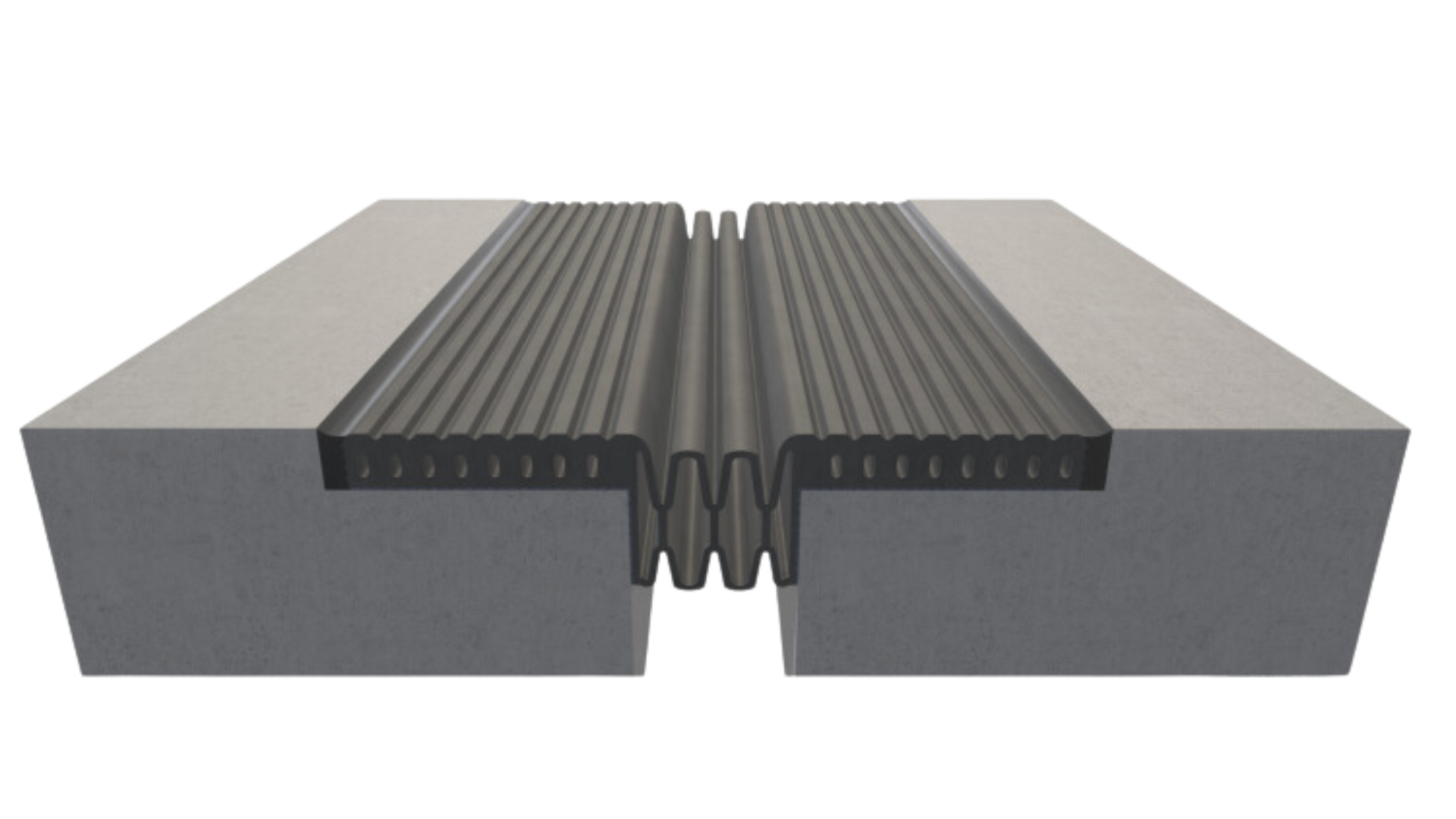

ZB Joint cover

Untitled (1080 x 1080 px) (35)
 Overview
This one-piece parking expansion joint cover has an EPDM seal that allows for movement, while the integral nosing eliminates the need for elastomeric concrete. During installation, the cover is bonded into a high-strength epoxy bedding and is sealed on each side with a urethane sealant, resulting in a durable and watertight system. It is available in five standard roll sizes - 20', 30', 65', 130' and 200'. Joint sizes range from 1" to 4". Contact the factory for larger sizes or custom applications.
 Advantages

• Great for parking structures and stadium applications
• Eliminates the need for messy elastomeric concrete
• One-piece design for fast and simple installation
• Splice kits available for field splicing of material
• No mechanical fasteners
• Durable, watertight system

Untitled (1080 x 1080 px) (36)

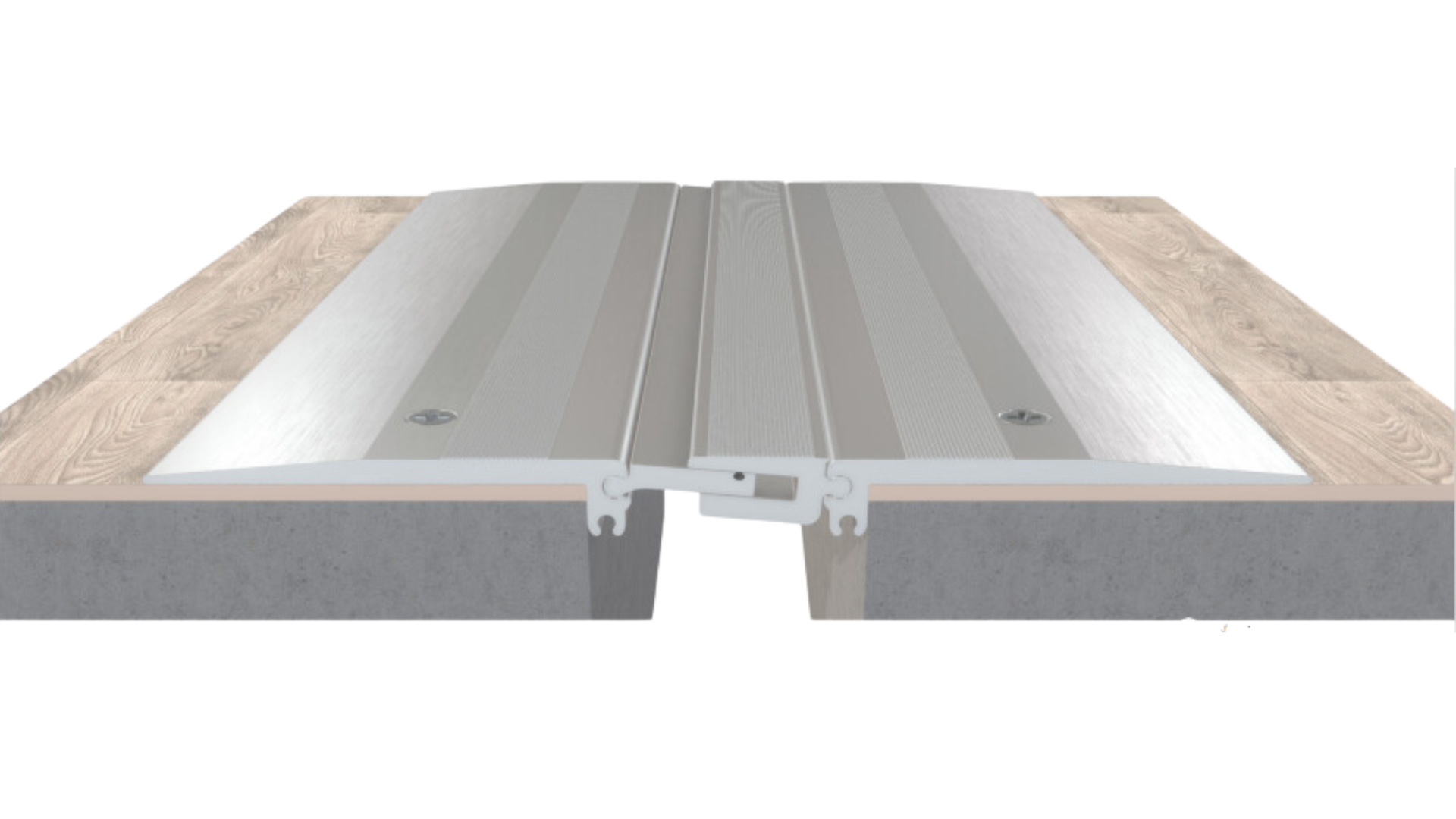

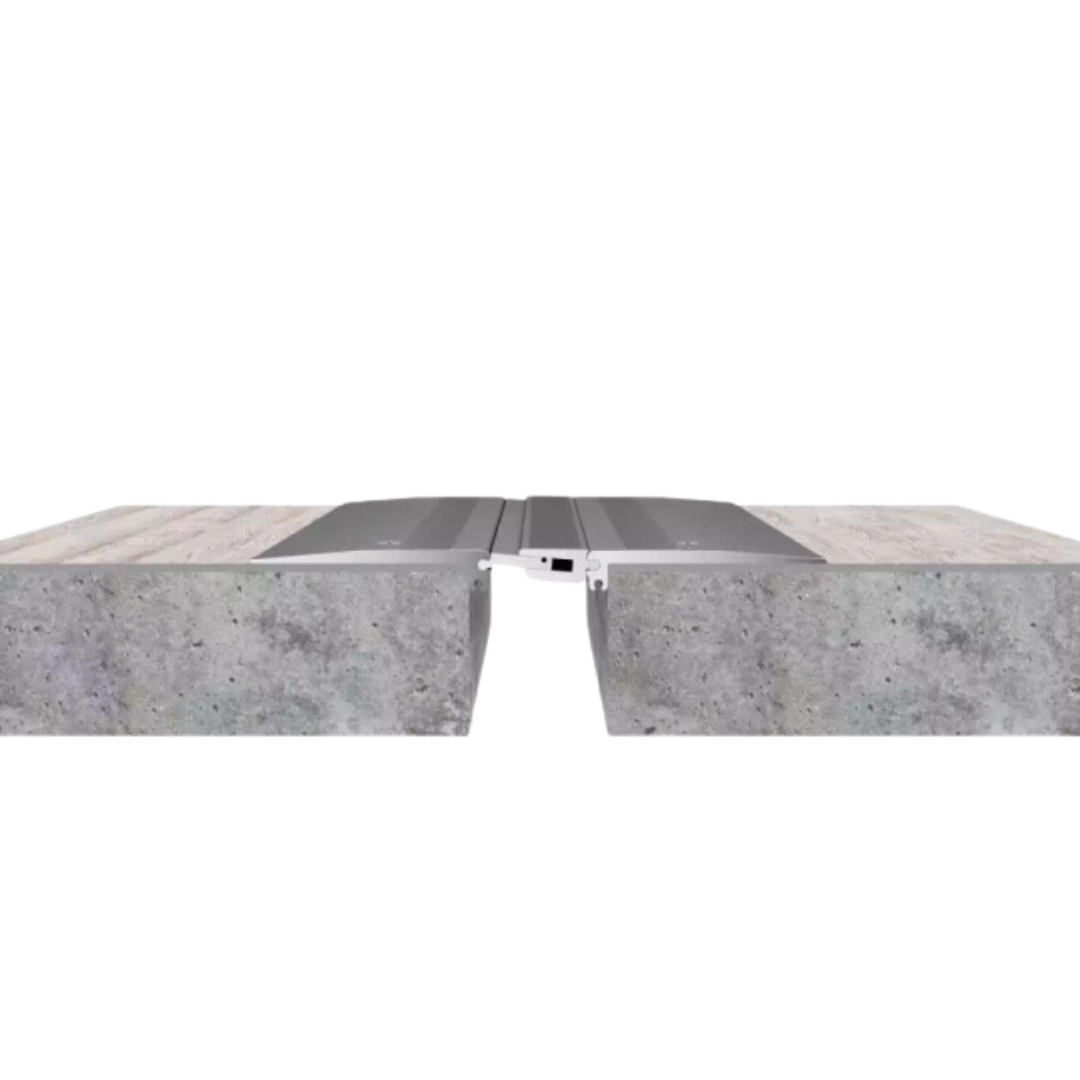

RFA Joint Cover

Untitled (1080 x 1080 px) (38)
 Overview
Part of our Restofit™ line, this all-metal, surface-mounted cover is resistant to rolling loads, distortion, and wear. It includes slip-resistant serrations and is intended for interior or exterior applications where minimal movement is expected. The unique interlocking cover design allows for horizontal movement in the floor slab and some vertical deflection and is extremely low maintenance. Joint sizes range from 2" to 4". Contact the factory for larger sizes or custom applications.
 Advantages

• Can accommodate offsets in floor elevation
• Great for new or retrofit applications
• Low maintenance
• Slip resistant
• Resistant to rolling loads, distortion, and wear

Untitled (1080 x 1080 px) (37)
