Compact Sweepers
Sweepers and vacuum sweepers walk-behind
Overview
For courtyards, paths, workshops and halls. For caretakers, tradesmen, contract cleaners and industry. Walk-behind sweepers and sweeper vacuums are ergonomic and easy to use. They sweep thoroughly with low dust development - even in corners. Machines with traction drive are ideal from 300 m².

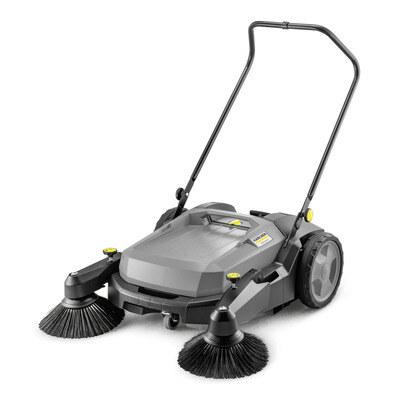

Low-dust sweeping inside and out: the flexible KM 70/20 C manual sweeper achieves optimum cleaning results thanks to its filter, sweeping roller and side brush.
.jpg "d3 (1)")

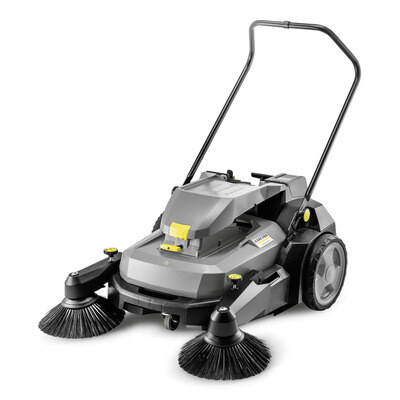

Optimum cleaning results inside and out: the KM 70/20 C 2SB manual sweeper with 2 side brushes ensures extensive area performance and virtually dust-free sweeping.
.jpg "d3 (2)")
The KM 70/30 C manual sweeper for cleaning indoor and outdoor hard surfaces – the filter with suction, battery electric sweeping roller drive and side brush drive minimise dust and maximise convenience.
Vacuum sweeper KM 75/40 W Bp
Compact, manoeuvrable and simple to operate: Our battery powered KM 75/40 W Bp push vacuum sweeper impresses when cleaning indoor areas of more than 600 m².
Our KM 75/40 W Bp push vacuum sweeper impresses with its clever equipment concept, its user-friendly operation and excellent cleaning results for indoor areas of more than 600 square metres. This is made possible by the proven overhead sweeping principle with a connectible side brush, sweeping surface adjustment that does not require tools and an exchangeable and adjustable main sweeper roller, which also does not require tools. The effective interaction of powerful dust suction and mechanical cleaning of the polyester flat pleated filter enables virtually dust-free work. Hard floors, for example in warehouses or production buildings, are cleaned quickly, efficiently and with little noise; with the optional carpet sweeping kit, this can also be achieved easily on textile floors. The integrated traction drive with infinitely adjustable sweeping speed, the clever EASY Operation operating concept and the movable 40-litre waste container with trolley system also ensure that long, fatigue-free cleaning applications are possible. Please note that the battery and battery charger are not included in the scope of supply for this vacuum sweeper version.
Features and benefits
Waste container with trolley handle
- Waste container with recessed grips – easy to remove and empty.
- Short disposal times.
Efficient filter system with mechanical filter cleaning
- 1.8 m² filter area for long operating periods.
- Long-lasting thanks to washable polyester material.
- Mechanical filter cleaning system with ergonomic handle.
Very easy to service
- No tools required for filter and brush roller replacement, enabling maintenance regardless of location.
EASY Operation operating concept
- Simple, convenient operation thanks to the logical arrangement of all control elements.
- Standard symbols for all Kärcher sweepers.
Vacuum sweeper KM 100/100 R Bp
Overview
TECHNICAL DESCRIPTION: Drive: - 24 V/750 W DC motor - 1 pedal for forward and reverse - small turning radius (3350 mm) - automatic parking brake with vacuum technology - automatic engine cut out when driver leaves seat - effective round filter system with automatic filter cleaning Sweeping/vacuum system: This machine uses the overthrow principle. In other words, the roller brush throws the dirt up and back into the dirt container. The floating roller brush adjusts automatically to uneven surfaces. The filter and roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container: Both 50 litre dirt containers can be removed from the side. Operation: The main roller brush and side brush can be automatically lifted and lowered via a switch. Forward and reverse via one pedal.
Features
Impact protection
Protects the sweeper and obstacles within the area being cleaned.
Large filter area with automatic filter cleaning system
The filter is automatically cleaned when the machine is switched off – for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools.
Easy to maintain
Filter and roller brush easy to remove without tools for flexible maintenance.
Vacuum sweeper KM 105/180 R Bp Classic
Overview
While it is suitable for sweeping large amounts of dust and coarse dirt outdoors, it can also be used effortlessly in heavily furnished indoor areas: our battery powered KM 105/180 R Bp Classic industrial sweeper is highly adaptable and can be used in a wide range of scenarios. The traction drive and the motors for the roller brush and side brush are fully hydraulic, making them extra robust. In combination with other high-quality components and non-marking rubber tyres, this makes for a low-maintenance machine with a long lifetime. A high-performance pocket filter system is integrated as standard, which is cleaned at frequent intervals via the automatic filter cleaning system, and therefore can deal with extremely dusty conditions easily. Alternatively, there is also a user-friendly flat pleated filter system or a reliable round filter system. The coherent overall concept of the KM 105/180 R Bp Classic is complemented by the simple, intuitive operation using levers, convenient high container emptying and particularly simple maintenance options.
Features and benefits
Robust design of the machine for safe work
- Fully hydraulic traction drive, main sweeper roller and side brush drive.
- Leads to longer service life of components and machine.
- Standard flashing beacon increases safety for user and environment.
Dustpan principle
- Guarantees good cleaning results also with fine waste.
- Effortless pick-up of coarse waste.
- Low dust production.
Simple operation, maintenance and servicing
- Intuitive operation using levers.
- Main sweeper roller and filter can be replaced easily without tools.
- Easy access to all key components.
Efficient pocket filter system
- Effectively minimises dust production when sweeping.
- Also available with optional flat pleated filter or round filter system.
- Extremely effective cleaning for a long service life.
Automatic filter cleaning
- Regular cleaning extends the service life of the filter.
- Reduces dust production, even in extreme external conditions.
- Functions reliably with all available filter systems.
Mini Sweeper LS175
The Must-Have Mini Sweeper for Your Fleet
LS175 is the only 48’’ wide, closed-cabin, high-dump sweeper manufactured in North America. Built according to North American standards with a 10-to-12-year lifespan, the LS175 will outlast most competitive models. This machine offers convenience at every level and your employees won’t need a CDL to hop in and start sweeping. Optional pressure washer and 15-foot retractable wander hose available.
Applications
Bike and pedestrian lanes
Parking lots
Curb side
Alleys
Pathways
Alongside buildings
Why the LS175
- Fully street legal lighting - safe and easy to use;
- A CDL permit is not required to operate this machine;
- 10 to 12 year lifespan will outlast most competitive models;
- Madvac has a 35+ years track record of success - when your machine is due for replacement we'll still be around
- For maintenance, LS175 offers unprecedented easy access to all critical components of the machine;
- LS175 can be purchased using Sourcewell (formerly NJPA) or other cooperative purchasing contracts-save money, get your machine quicker.
Body
- Triangular frame tubing for engine 0.25'' (6.35 mm) 13 gauge fully welded / reinforced steel
- Hinged side doors for oil cooler and radiator access on both sides
- Double-layer baked powder coating electro statically applied
Engine
- Model: Hatz Tier 4 Final engine 3H50TIC 3 cyl. turbo with in-cab troubleshooting switch and light
- Displacement: 91.54 cu. in. (1500 cc)
- Gross rated power: 58.5 HP (44.0 kW) @ 2800 RPM
- Air cleaner: Donaldson 2-stage filtration system
Cabin
- 200-degree cab vision
- Full windshield laminated glass
- Full ventilation, pivoting side windows
- Side windows open each side
- Defrost: windshield heated micro filament / heated mirrors
- Adjustable suspended air seat with 2-point seat belt
- Retractable armrest with illuminated switches
- Heating / AC: HVAC unit
- Radio / CD / MP3 player (optional)
- Interior dome light
- Floor glass window with grill for full vision
Madvac LS175
Compact Sweeper Keeps Your City Beautiful and Clean
