Acoustic Treatment Systems
2100 Series - Prefabricated fabric covered acoustic panels
Optimal acoustic performance
Prefabricated in the factory, the prefabricated acoustic panels are composed of a synthetic resin frame and a fiberglass central panel. Whether on the walls or on the ceiling, the prefabricated panels are easy to install and offer endless design possibilities thanks to their large selection of fabrics.
Properties
Available width
• Maximum of 1219mm (4’0”)
Available height
• Maximum of 2438mm (8’0”)
Thicknesses
• 2110 model- 25mm (1’’)
• 2120 model- 51mm (2’’)
Sound reduction coefficients
• 0,75 for 25mm (1”) panel
• 1,00 for 51mm (2”) panel
Characteristics
• Controls sound reverb
• Prefabricated panel
• Non-combustible and non-hygroscopic
high-density insulation
• Class A noncombustible fabric or vinyl
• Installation on the wall or ceiling
2200 Series - Perforated metal acoustic panels
The key to a soothing environment
Perforated metal panels ensure acoustic comfort by controlling the main irritant: sound reverberation. Economical, of great resistance and simple to install, they require little maintenance. Their solidity makes it the ideal choice for industrial or school applications where the risks of impacts are omnipresent. Versatile, they can be installed on the walls or ceiling.
Coated with an ultra-resistant powder paint, they are available in a wide variety of colors.
Characteristics
2200P and 2200V models
- Model 2200P and 2200V
- Controls sound reverb
- Prefabricated factory or custom panel
- Fiberglass insulation
- Electrostatic finished powder paint
- Installation on the wall or ceiling
2300 Series - Acoustical treatment-Tensioned fabric system
Noise control
The Tensioned fabric system offers the flexibility to apply acoustic treatment to any surface, in order to create a space with an inspired design and leading acoustic performance.
This custom-made system is entirely manufactured and installed on site, according to the desired shapes and dimensions, ensuring a harmonious integration with the other architectural elements.
Properties
Available width
According to the request
Available height
According to the request
Sound reduction coefficient
0.80 for 25 mm (1 inch) panels
Custom Wall Padding
Although the manufacturing is the same for both permanent and removable padding, the benefits can vary quite a bit, depending on your projected use. Permanent padding is perfect for athletic facilities looking for a long-lasting safety solution for high traffic areas in gymnasiums such as around volleyball courts and underneath basketball nets.
Custom cut outs around doorways, windows, heating vents, light switches and electrical outlets are standard with most of our permanent padding projects.
Our removable wall padding provides much of the same as mentioned above, but with the added versatility in having the ability to remove the padding at any time for a wider range of use. Removable padding is typically used in athletic environments such as gymnasiums that host a wide variety of sporting events. The wall padding gives your facility the ability to provide participants in high speed sports such as basketball the safety they need, while also giving you the ability to use the padding as a gym mat for other activities such as gymnastics and wrestling.

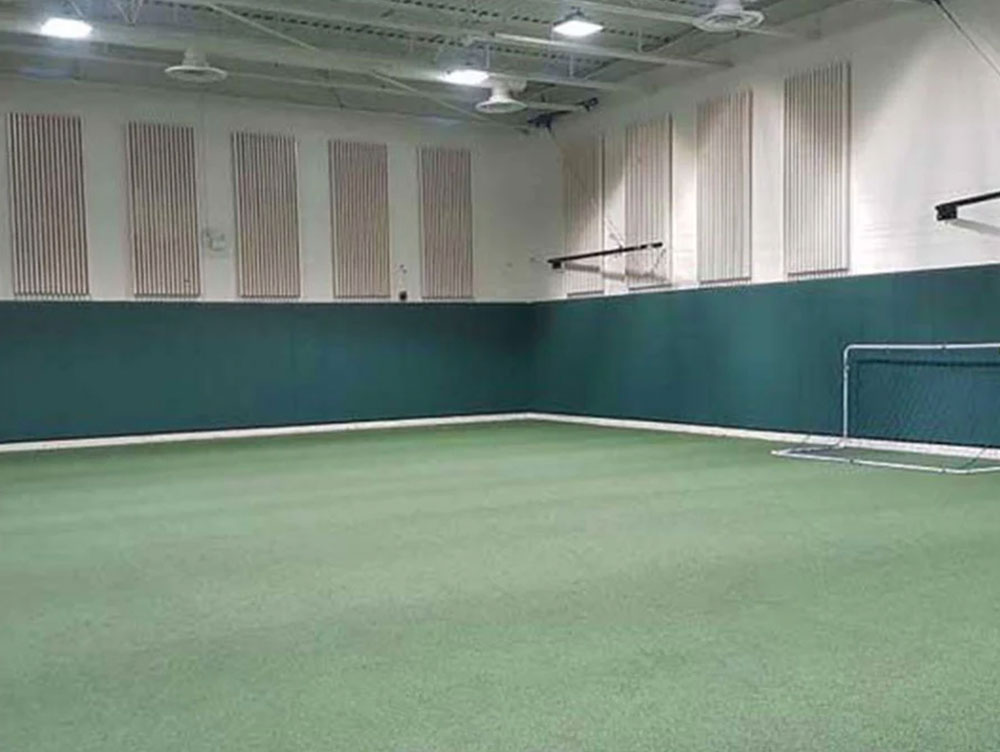

Permanent wall padding
Permanent padding is perfect for athletic facilities looking for a long-lasting safety solution for high traffic areas in gymnasiums such as around volleyball courts and underneath basketball nets.
Custom cut outs around doorways, windows, heating vents, light switches and electrical outlets are standard with most of our permanent padding projects.
Our model 53-1 wall padding is designed to be permanently mounted. Our clients use these wall pads in schools, community centres, seclusion rooms & even for outdoor applications such as baseball outfield board padding.
Standard Padding:
- 2′ wide by 6′ high
- 2″ high density foam
- Heavy-duty vinyl cover available in 9 standard colours
- Vinyl has a leather emboss finish
- Mildew & rot resistant & easy to clean with soap and water
- Treated with U.V. pigments for weatherability
- Vinyls meet ASTM E 84 Class A, NFPA 701-1989 Large Scale and CSFM requirements for flame retardancy
- ASTM standard 2404-04 for impact attenuation
- Cutouts are available for outlets or light switches
- Non-standard heights and sizes available
Fire-Retardant Padding:
- Backed with 7/16” oriented strand board for permanent mounting
- Foam is 2” thick, open cell, 8-9.5 lb density, #110 I.L.D. (indentation load deflection) low smoke polychloroprene latex compound
- Entire pad assembly meets (as per NBC 2005): CAN/ULC-S102 – PASS* “Surface Burning Characteristics of Building Materials & Assemblies”
- Entire pad assembly meets Class A rating per ASTM E-84 “Standard Test Method for Surface Burning Characteristics of Building Materials”
- ASTM standard 2404-04 for impact attenuation
- Heavy-duty vinyl covering available in 11 standard colours
- Standard pad size is 24” wide x 89” high x 2.5” thick (overall)
- Custom heights available

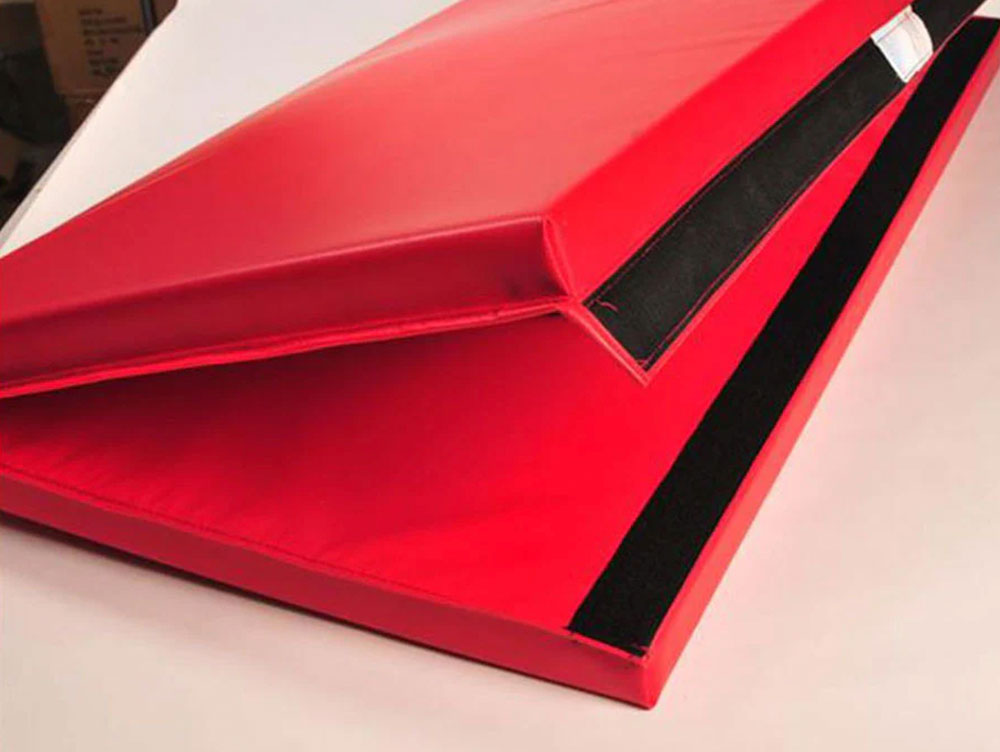

Removable Wall Padding
We proudly offer a removable alternative to our conventional permanent padding. Our removable padding is the choice for those seeking to use their wall padding system for gymnastic applications on an as needed basis.
Custom sizes and configurations available.
Features
- 2″ 100 I.L.D. filler
- Heavy-duty vinyl cover available in 11 standard colours
- Vinyl has a leather emboss finish
- Mildew & rot resistant & easy to clean with soap and water
- Treated with U.V. pigments for weatherability
- 8′ long aluminum velcro channel wall strips (AWS-8) directly mount to wall
- Mats fasten to a top and bottom strip via velcro as needed
- Vinyls meet ASTM E 84 Class A, NFPA 701-1989 Large Scale and CSFM requirements for flame retardancy
Digital Printed Padding Logos
The gymnasium has become so much more than simply a place to play sports. It is is place for camaraderie, togetherness and school spirit. With unmistakable value placed on the branding power of school and collegiate gymnasiums, it’s no surprise that institutions across the United States and Canada are looking for the best way to showcase their academic and athletic prowess. With digitally printed wall padding from Sport Systems, we’ve answered that call.
Printed on the same tough and durable padding and vinyl our customer base has come to expect, the process uses durable and curable inks leaving behind a vibrant image and message that does not fade, peel or tear like a decal does.
Features:
- Four-colour, CMYK printer with a white ink option
- Two, double-print heads per colour
- 1,400 dpi resolutions
- Photographic-quality images
